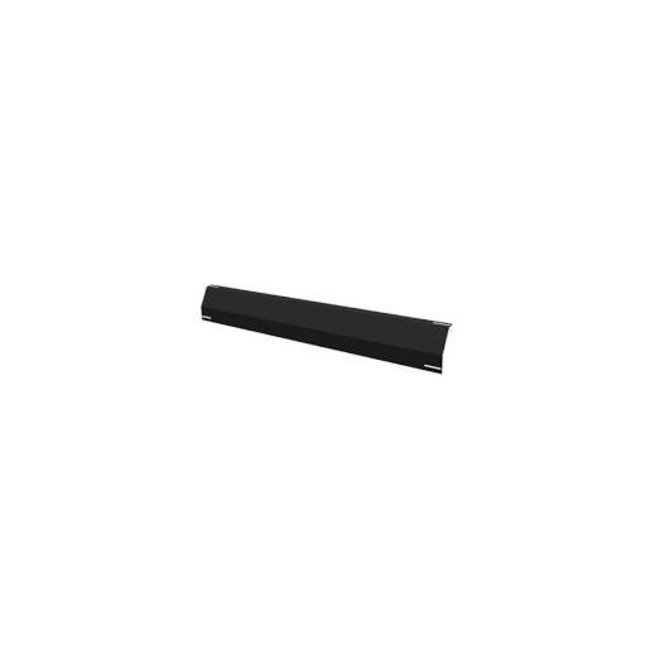

Flatfix Fusion Rear wind deflector 1700mm Black

Flatfix Fusion Rear wind deflector 1700mm Black
€19,90 Excl. tax
In stock

Flatfix Fusion Rear wind deflector 1700mm Black Read more..

Voor 14 uur besteld vandaag verzonden
  • RUIME VOORRAAD

    Meer dan 1500 producten standaard op voorraad
  • GOEDE KLANTENSERVICE

    Klanten beoordelen ons met een 9.1/10
Esdec's FlatFix Fusion rear fairing 1700mm in black is suitable for flat roofs. The wind deflector is mounted on a long mounting element on the back of the solar module and is also grounded. The first wind deflector must be installed behind the raised edge of the long mounting element. The grounding adapter is fixed to the mounting profile and the back of the air deflector via 6.5 x 19 mm mounting screws. Secure only one side of the air deflector to the long mounting bracket by threading the mounting screws into the ground adapter guide holes and through the two slots on the long mounting bracket. When tightening the screws in the mounting element, be careful not to damage the threads. The second rear fairing must also fit behind the raised edge of the long mounting element and slightly overlap the first fairing. Repeat these steps for the remaining weatherboards in the row. The FF100-7209-B is available in a length of 1700 mm and is suitable for panel lengths from 1655 to 1795 mm.
